Rental Cameras: Toyo 45AII

Toyo 45AII; Canon 30D, Canon 200mm f/2.8L, Canon 430EX, LumoPro LP120

For my final camera rental, I moved up a format size and tried a 4x5 field camera. As I mentioned earlier, I skipped the Mamiya 7 as the Fuji rangefinders gave me a good idea of how a medium format rangefinder would handle; the Mamiya would be slightly easier to use, with an integrated meter, but in all other respects much the same. Instead, I rented the Toyo 45AII, a 4x5 metal field camera. Since there's not much point extensively comparing ergonomics between a 4x5 camera designed to be used on a tripod, and handheld medium format cameras, I've condensed the usual two part post into one part for this camera. Also, there are no size comparison photos; while the Toyo is a fairly compact field camera, it still requires a tripod.


Rodenstock Lens Details; Canon 30D, Canon 200mm f/2.8L, Canon 430EX, LumoPro LP120

When using it on a tripod, the Toyo is very easy to use; all movements are easy to find, lock and unlock, and use. The back rotates, making vertical shots easy. Typically for most field cameras, the bellows extension tops out at about 300mm, which is fine for the intended applications, and enough for 1:1 magnification with a 150mm lens.

A California Beach; Toyo 45AII, Rodenstock Apo-Sironar-S 135mm f/5.6, Kodak Tmax 400

The lens I rented with it was a Rodenstock Apo-Sironar-S 135mm f/5.6, about which I have nothing bad to say. Small, light, and sharp. The 135mm focal length was nice, but I suspect if I were to go into 4x5 I would prefer a 90mm and a 210mm pair instead; the 135mm was slightly wide, but still close enough to a normal 150mm that I'm not quite comfortable with it.

Coastal Rocks And Surf; Toyo 45AII, Rodenstock Apo-Sironar-S 135mm f/5.6, Kodak Tmax 400

The really interesting part of this camera though is the 4x5 negative. Sadly, the store I rented from didn't have any boxes of Ilford emulsions in stock in 4x5 size, so I had to use Kodak Tmax 400 (nothing against Kodak, I just prefer to support Ilford). Since I hadn't been having much luck with digital negatives, a 4x5 sized negative for contact printing appealed to me greatly. Scans of cyanotypes made from one of these negatives are coming shortly, but I was certainly not disappointed with them. Scanning the negatives was also very satisfying, due to all the detail in them and the incredible tonality.

Kelp; Toyo 45AII, Rodenstock Apo-Sironar-S 135mm f/5.6, Kodak Tmax 400

To test the camera, I took it down the coast on Highway 1, down to the Point Montara lighthouse and back, stopping along the way at one of the beachs, and the Pacifica pier. The camera performed very well as a landscape camera, easy to setup and take down, and quick to use. Amazingly, I also managed to load all the film holders correctly, so all the shots came out very well.

Pacifica Pier; Toyo 45AII, Rodenstock Apo-Sironar-S 135mm f/5.6, Kodak Tmax 400

The other test, as with the medium format cameras, was a studio style test. Due to time restrictions on returning the camera, I couldn't take any food shots, so I did a shot of one of my other cameras. Using it with the strobes was much like using the Mamiya RZ67; set the strobes for an exposure higher than what you need, due to the need to compensate for the bellows extension. The result, seen below, was excellent, showing incredible detail on the camera.

Olympus 35RC; Toyo 45AII, Rodenstock Apo-Sironar-S 135mm f/5.6, Kodak Tmax 400

The final piece of this experience that I want to mention was the tripod the rental shop gave me with the camera; a Manfrotto/Bogen 190XDB with 804RC3 3-way head. This was an excellent combo for a lightweight 4x5 camera or any medium format camera, and I reinforced what I already knew, which is that I much prefer 3-way heads to ballheads. No matter what camera I end up with, I hope to acquire one of these tripods (probably a 190XPROB for the better center column).

Cable Release; Canon 30D, Canon 200mm f/2.8L, Canon 430EX, LumoPro LP120

Rental Cameras: Fuji GW670 & GSW690, Part 2

Into The Woods; Fuji GSW690III, Ilford HP5+

This continues part 1 of my discussion of the Fuji fixed lens rangefinders, the GW670 and the GSW690. I took these two cameras on a walk through Golden Gate Park, and shot two rolls of Velvia (50 and 100), and one roll of HP5+. I took two rolls with the GSW690, since I suspected that would be my preferred camera of the two.



Various; Fuji GSW690III, Fuji Velvia 50, Ilford HP5+

What I found is that these cameras have wonderful sharp lenses; certainly I can't see any difference from the RZ67 or the 503C/W shots. The 65mm in particular compares very well to the 65mm on the RZ67. Additionally, just as 6x7 doesn't seem much larger in dimensions than 6x6, but looks much larger, 6x9 looks huge compared to 6x7. Indeed, it's almost large enough to be satisfied with for contact printing.


Various; Fuji GW670III, Fuji Velvia 100F

I also enjoyed the 65mm lens on the GSW690 a lot; the wide angle view makes a very nice change from the usual fixed normal lenses. While I'm not quite as good with a wide angle as I am with a short tele or a normal, I was able to get some very successful shots with it, as long as I remembered to keep something in the foreground! Worth noting, however, is that even the 90mm lens on the GW670 will never do anything more than environmental portraits; apart from the field of view, you just can't focus close enough with a rangefinder.

Broken Tree; Fuji GSW690III, Ilford HP5+

In summary, either of these cameras would be a good travel camera for landscape/street/urban use; they have great lenses, large negatives, are easy to use, and easy to pack and carry. The GSW in particular would be nice for carrying around a city, with its wide angle lens. For my usage, though, it would have to be a second camera, which is just not feasible for me at this point.

Green & Red; Fuji GW670III, Fuji Velvia 100F

Rental Cameras: Fuji GW670 & GSW690, Part 1

Fuji GSW690III; Canon 30D, Canon 200mm f/2.8L, Canon 430EX, LumoPro LP120

The third camera on my rental list was the Mamiya 7, but I decided that instead the Fuji rangefinders would be a representative sample of a medium format RF instead. Even used prices for the Mamiya 6 were such that I couldn't seriously consider it, so instead I went straight to the Fujis. There are 4 variations of the same basic RF, made up of all the combinations of 6x7 or 6x9 frame size with a 90mm or 65mm lens. I rented the GW670III (90mm f/3.5, 6x7) and the GSW690III (65mm f/5.6, 6x9); I would have preferred both 6x9 cameras, but the rental place I use only carries the 670 version of the GW. As before, part 1 of this discussion will focus on handling, size, weight, usage, etc, and part 2 will show results from the 3 rolls of film I exposed with these cameras.

Size and weight are the big gains from this bodystyle when compared to MF SLRs, and the comparison pics here show that fairly clearly. The pictures show a GSW690 with a 30D + 200mm f/2.8L; sadly I forgot to take the comparison pictures with the Yashica D, but the relative size should be fairly clear.


Fuji GSW690III size comparisons with Canon 30D; iPhone

While the body size is comparable to the 30D, the lens is much smaller. And the body is really just wider and taller, not deeper. With a wide or normal prime on the DSLR, the size would be very close, with the DSLR weighing slightly less, depending on the prime used. Versus the Yashica D, this is clearly a much larger camera; however, in exchange you get a wide angle lens instead of a normal, and 6x9 film area instead of 6x6, and the camera still fits in a bag easily.

Fuji GW670III & GSW690III 1; Canon 30D, Canon 200mm f/2.8L, Canon 430EX, LumoPro LP120

In terms of handling, the Fujis are very easy to use, with a few caveats. Shutter speed and aperture controls are on the lens barrel, and can be turned together to preserve a correct exposure with a range of settings (old-school "program mode"). Viewing and focusing is via the viewfinder, which shows framelines and an RF patch. This is the first caveat. At least on the III models I had, I found the RF patch hard to see at times. I do sometimes have the same problem on my 35RC, but given the relative prices of these cameras, I'd expect better. I believe that the older I and II models have a different RF mechanism with a different looking patch, but I don't know if it's better or worse than the III's. The second, and more minor caveat, is that the built-in lens hood on the barrel can be a little loose, and slip down over the shutter/aperture controls (it covers them when fully retracted).

Fuji GSW690III Shutter Release; Canon 30D, Canon 200mm f/2.8L, Kenko extension tubes, Canon 430EX, LumoPro LP120

The other major downside of the fact that these cameras are rangefinders is the inability to do close up work. Even with the GW670, I would be unable to use it for food, or portraits other than environmental. To be fair, this was clear going in, and no surprise to me; these cameras work well as highly portable landscape/cityscape/etc cameras with a large negative size, and I knew that using them for anything else would be almost impossible. Still, if your needs include any sort of close up work, these would have to be a second camera, not an only/primary.

Fuji GSW690III Lettering; Canon 30D, Canon 200mm f/2.8L, Kenko extension tubes, Canon 430EX, LumoPro LP120

A major point in favor of these cameras, though, is the lens(es). While the GW has a fairly standard wide-normal 90mm lens, the GSW has a very nice 65mm lens, which on 6x9 behaves like a 28mm. If you're looking for a wide-angle fixed lens camera, this is excellent. The only minor quibble is the f/5.6, but I found that even on a gray day with 50 and 100 speed film, I was able to get easy exposures, and 400 speed would make it trivial. As far as frame sizes go, the 6x7 cameras are simply 6x9 cameras with a different film mask, advance gearing, and viewfinder framelines. Unless you really need the two extra shots a roll or hate the 3:2 aspect ratio, I'd carry the 6x9 for the extra negative size.

In their intended niche, however, these cameras are wonderful. Easy to carry, easy to use, with a nice wide-angle lens (or normal), and huge negative size. Part 2 of this discussion will look at the results from my outing in Golden Gate Park to see what results from these cameras look like.

Fuji GW670III & GSW690III 2; Canon 30D, Canon 50mm f/1.8, Canon 430EX, LumoPro LP120

Rental Cameras: Hasselblad 503C/W, Part 2

Risotto With Shaved Truffle; Hasselblad 503C/W, 120m f/4 Makro-Planar, Ilford HP5+

This continues part 1 of my discussion of the Hasselblad 503C/W. I didn't take as many rolls with this as with the Mamiya RZ67, since I didn't get to take any trips with it. Thus all the images are from San Francisco, or from food/camera photography in my apartment. I shot 1 roll of HP5+ at 1600, 1 roll of HP5+ at 400, and 1 roll of Provia 100F. Because I was hand-holding the camera in some very low light situations (hence the 1600 HP5+) I had a little less luck than with the RZ67 images, but still got plenty of good frames.

Pond Reflection; Hasselblad 503C/W, 120m f/4 Makro-Planar, Ilford HP5+ @ 1600

In terms of the lenses used, all of them worked well, although I had a strong preference for the 120mm f/4 Makro-Planar (as I suspected). The 150mm f/4 Sonnar was my second favorite, which is again not a surprise. I didn't rent a wide-angle lens this time, preferring to compare with the normal lens instead. If were to have to use only one lens with this camera, it would have to be the 120mm, or possibly the 150mm with extension tubes or close up filters.

Trunk Detail; Hasselblad 503C/W, 150m f/4 Sonnar, Ilford HP5+

For the food and product photography, the 120mm worked very nicely. As with the RZ67 + 180mm, to get any closer I would need tubes or filters, but without these it can just about fill the frame with a plate, which would be what I need. I also didn't find any exposure compensation needed at the closest focus distance; I shot the food pictures in 0 and +1/2 EV pairs, and the 0 versions worked fine.

Otsu Soba Noodle Salad (Provia); Hasselblad 503C/W, 120m f/4 Makro-Planar, Fuji Provia 100F, Canon 430EX, Lumiquest SB-III, LumoPro LP120

Provia continues to display its blue color cast in the shadow areas, which works well for pictures of the high-tech DSLR. For the food, since there wasn't a white background, I could "correct" it, resulting in a frame much warmer than the more neutral DSLR versions.

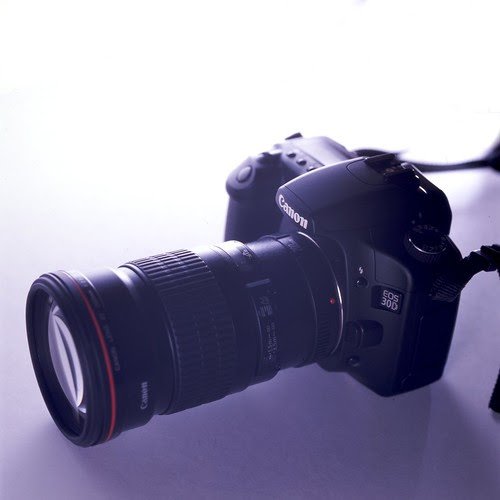

Canon 30D 2 (Provia); Hasselblad 503C/W, 120m f/4 Makro-Planar, Fuji Provia 100F, Canon 430EX, Lumiquest SB-III, LumoPro LP120

In terms of comparison to the Mamiya RZ lenses, at least to my eyes, there's not much in it. Along with the extra 1cm in the 6x7 negative (it doesn't sound like a lot, but 6x7 negatives do look much larger than 6x6), I certainly wouldn't choose the Hasselblad for image quality reasons, especially not if wanting to print rectangular. There's certainly nothing wrong with the lenses, but neither is there anything that makes me go "wow". I feel like all the frames I took with them would have been just as good with the RZ lenses. The reason to choose the Hasselblad, for me, would be the size/weight savings. Two things are making me prefer the Mamiya, though. The first is the price, which even used, is high for the Hasselblad system. The second is the close focus issue (the 120mm would solve this problem for me, but again, $$$). To take price out of the equation, a Bronica SQ system is comparable to the RZ67 system, and has some cheaper lenses that focus fairly close. However, I'm still not sure that the size/weight savings over a minimal RZ67 system would make it worth it; a rangefinder system is much more portable than either SLR system, and a 645 SLR system would also be fairly small. I feel like if I'm going to carry a medium format SLR system, it may as well be 6x7.

Flowers After Rain; Hasselblad 503C/W, 80mm f/2.8 Planar, Ilford HP5+

In summary, the RZ67 is still my top choice for a medium format system. I'm also planning to make a slight change in my rental plans, and not rent the Mamiya 7 system; the prices for both the Mamiya 6 & 7 systems are such that I don't really want to consider them. Instead, I'll move on to the Fuji rangefinders (and possibly try a GA645 as well as the GW/GSW series), and then make one very different comparison: 4x5. I don't think I'm ready to give up handholding, and work purely from a tripod, but who knows? I should at least try it. Finally, all the photos from my rental can be seen in this Flickr set.

Stair Step Building; Hasselblad 503C/W, 120m f/4 Makro-Planar, Ilford HP5+
